Jet Fans are a pollution control solution that helps induce air to a common exhaust point through directed airflow. They have been globally accepted as a cost-effective alternative to traditional ducted parking garage ventilation for years.

Jet Fans do not require ductwork. This saves money, provides a cleaner look with fewer conflicts, lowers height requirements, lower construction cost, and allows for easier maintenance.

For Jet Fans in India, consider Marut Air, a leading manufacturer of Jet Fans.

Redefining Air Circulation with Marut Air

Elevate your indoor comfort with Marut Air’s cutting-edge Jet Fans. As a leading Jet Fans Manufacturer in India, we’re committed to delivering innovative solutions that optimize airflow and enhance your living or working environment. Contact us today to learn more about our products and services.

Features

  • Dual Use: For daily ventilation and smoke extraction in case of fire (300 °C/120 min.)
  • Symmetrical Aero-Dynamic blades for maximum thrust with low sound level
  • Motors IP55 insulation class H (smoke extract); Motors IP55 insulation class F (CO-exhaust), according to EN 60034-5/IEC 85
  • Casing manufactured from galvanized steel
  • Conforming to EN 12101-3 (300 °C for 120 mins / 2 hrs)
  • Fan size 315, 355, 400 diameter

erv

Technical Data



Jet Fan Model Mode Air Volume Thrust Noise Level Motor Motor Pole Motor Protection Phase Insulation Weight (Kg)
    CMH N dB(A) @ 3m (KW) Nos.       Kg
MJT-315UD Normal 2325 6.5 50 0.18 4 IP55 3 H 60
Fire 4650 25 64 0.75 2
MJT-355UD Normal 3500 11 52 0.37 4 IP55 3 H 75
Fire 7000 45 65 1.50 2
MJT-400UD Normal 5250 20 54 0.40 4 IP55 3 H 90
Fire 10500 80 68 2.20 2
MJT-450UD Normal 6750 26 55 0.55 4 IP55 3 H 100
Fire 13500 104 69 3.70 2

Dimension

Jet Fans
Model A B C D E F G H I
MJT-315 320 420 340 290 630 1600 270 320 214
MJT-355 360 460 400 350 700 1800 300 350 234
MJT-400 405 505 440 390 800 2040 330 380 256
MJT-450 455 555 470 420 900 2270 350 400 262



Jet Fans
Distance From Nozzle (m) 4 8 12 16 20 24 28 32 36 40 44 50
Flow Width (m) 1.6 3.3 4.9 6.7 8.4 10.0 11.8 13.5 15.2 17.0 18.5 20.8
Center Line Velocity (m/s) MJT-355 4.4 2.4 1.6 1.4 1.2 1 0.5 0.25
MJT-400 5.3 2.9 2.0 1.5 1.2 1.0 0.9 0.65 0.45 0.26 0.12
MJT-450 6.5 4.5 3 2.4 2 1.8 1.4 1.2 1 0.8 0.6 0.2

APPLICATION

Jet Fans

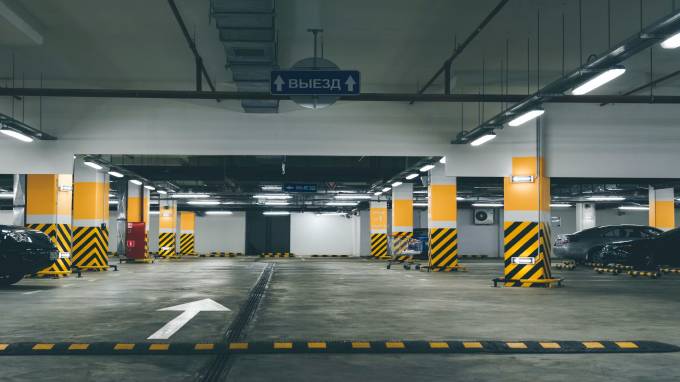

Basement
