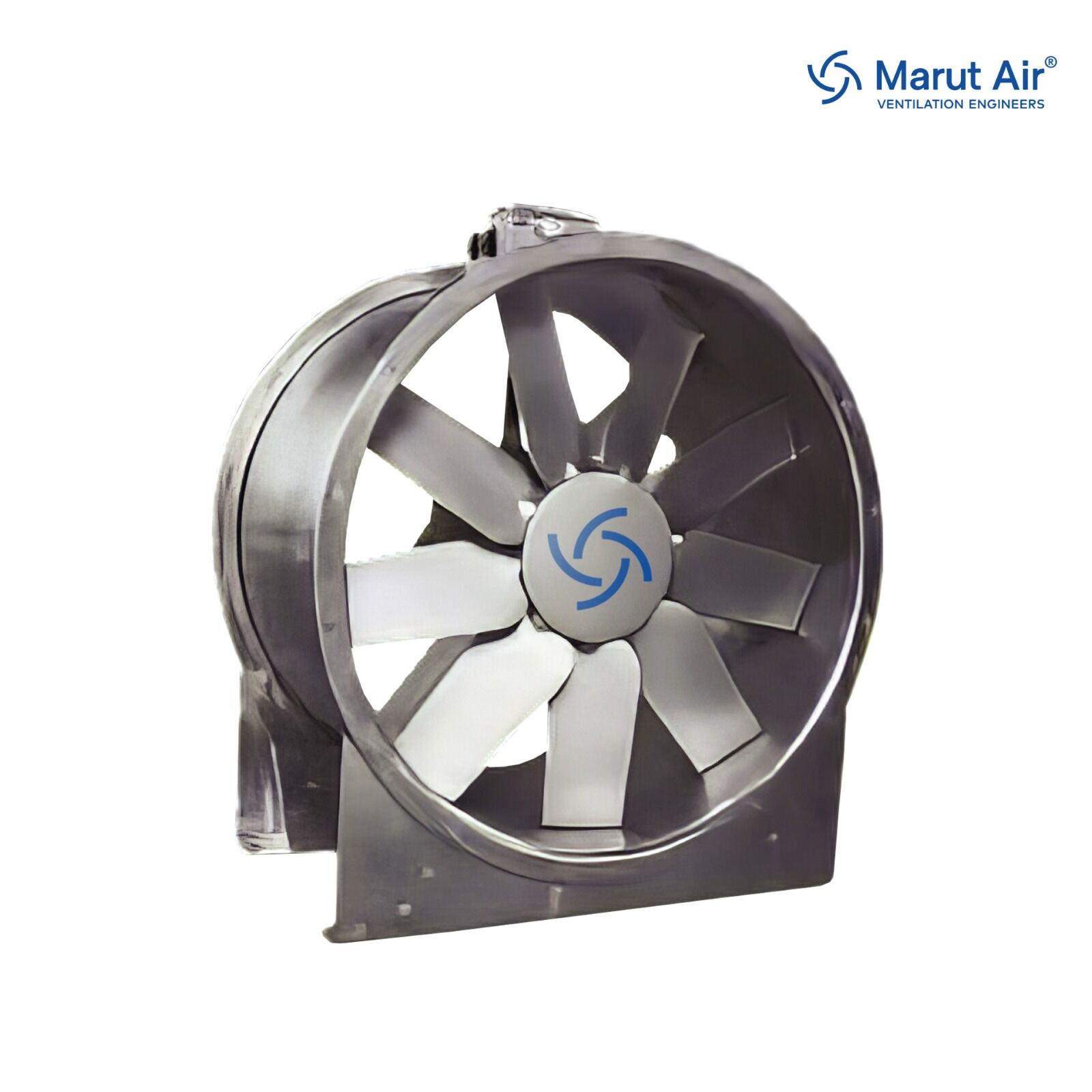

Axial Fans (Smoke Spill Fans)

Smoke Spill fans, manufactured by Marut Air, a leading Axial Fans Manufacturer in India, are crucial components of smoke exhaust systems in commercial buildings, shopping malls, hospitals, and other large structures. Strategically positioned at ramp openings, these fans efficiently extract smoke and expel it into the environment, ensuring the safety and well-being of occupants during emergencies.

Our direct-driven, high-performance Axial Flow Fans are engineered for efficient ventilation systems. Available in a wide range of sizes from 315 to 1600 mm diameter, they cater to diverse volumetric flow requirements. The field-adjustable blade pitch allows for optimal system adaptability.

Designed for both indoor and outdoor applications, our fans offer versatile installation options, including ducted and non-ducted systems. The robust casing ensures durability and longevity.

Marut Air’s commitment to energy efficiency and noise reduction ensures that our fans deliver superior performance while minimizing operational costs.

erv


Features

  • Dual use: For daily ventilation and smoke extraction in case of fire. Symmetrical Aero-Dynamic adjustable blades for maximum efficiency.
  • Motors IP55 insulation class H (smoke extract)
  • Motors IP55 insulation class F (CO-exhaust), according to EN
  • 60034-5/IEC 85
  • Casing manufactured from galvanized steel or mild steel (as per requirement).
  • Conforming to EN 12101-3 (300 °C for 120 mins/2hrs)
  • Fan size from 315 to 1600 mm diameter.

Technical Data



Model Wheel Diameter A B Motor Framesize Model Wheel Diameter A B Moter Framesize
MAF-315 315 390 340 70-80 MAF-1120 1120 1238 570 132M
MAF-355 355 430 340 71-80 700 160L
MAF-400 400 475 375 90S 760 180L
MAF-450 450 525 340 71/80 800 200L
400 90S/90L
MAF-500 500 591 400 90S/90L MAF-1250 1250 1370 700 160L
MAF-560 560 652 400 90S/90L 760 180L
MAF-630 630 724 465 112M 800 180L
MAF-710 710 804 465 112M MAF-1400 1400 1520 800 180L
MAF-800 800 895 465 112M 800 200L
530 1325 960 250L
MAF-900 900 995 570 132M MAF-1600 1600 1750 800 200L
660 160M 960 250L
MAF-1000 1000 1118 570 132M 800 200M
700 160M 1220 315M

Dimension

APPLICATION

OFFICES

HOTELS

HOSPITALS

GYMS

BAR

RESIDENTIAL
